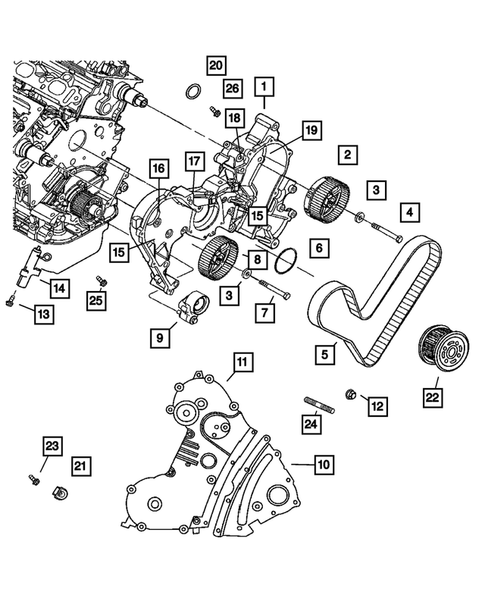

Timing Belt and Cover for 2005 Chrysler Pacifica
No.
Part # / Description / Price
Price
2
Camshaft Sprocket, Left
Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: Includes Cam Sensor Ring. Left.
3
Flat Washer, Mounting, Right And Left Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: ID=M13 OD=31.00 THK=5.71. Camshaft Sprocket To Camshaft
4
Hex Head Lock Bolt, Mounting, Left Side Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M12X1.50X258.00. Camshaft Sprocket To Camshaft
6
Water Pump To Front Cover Seal Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: Timing belt cover to block.
Out of Stock
Out of Stock
7
Hex Head Lock Bolt, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M12X1.50X215.00. Right Or Rear Camshaft Sprocket To Camshaft
9
Pivot Tensioner Arm Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: Includes Mouting Bolts
Out of Stock
Out of Stock
10
Timing Case Cover, Outer Lower Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: Outer Lower.
12
Flange Lock Nut, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M10x1.50. Outer Timing Case Cover To Cylinder Block
13
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M8x35x17. Chain Guide To Cylinder Head
14
Belt Tensioner 2 Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: w/Arm, Pivot Bolt, and Snubber
Not For Sale
Not For Sale
15
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M6X1.00X35.00. Chain Tensioner To Carrier Gear Cover
16
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M8X1.25X25.00. Outer Timing Case Cover To Inner Cover
17
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: M10x1.50x85.00. Front Timing Cover To Cylinder Block[M10x1.50x85.00]
Out of Stock
Out of Stock
18
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M6x20. [M6X1.00X19.00]. Timing Belt Outer Cover To Inner Cover
19
Hex Head Bolt And Washer Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M10x1.5x35. Timing Belt Cover Inner to Head Left
20
Timing Case Cover Gasket Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: Water Inlet to Block.
22
23
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M6X1.00X20.00. Outer Timing Case Cover To Inner Cover
24
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: Outer Timing Case Cover To Cylinder Block
25
Hex Head Lock Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE.
Description: M10x1.50x50.00. Timing Case Cover To Cylinder Block
Out of Stock
Out of Stock
26
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 3.5L V6 24V MPI ENGINE. 3.8L V6 OHV ENGINE.
Description: M10X1.50X105.00. Inner Cover To Left Cylinder Head
2 This part contains hazardous materials. Extra shipping costs apply.
